MDU-S1XS-T13AP11X
Art.-Nr. 857-02228 | MDU-S1XS-T13AP11X |

Kopiert

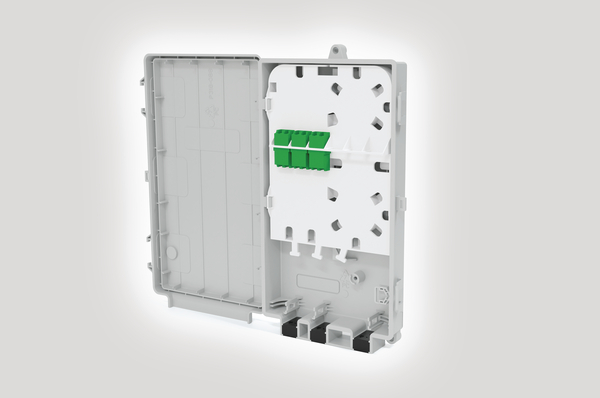

Internal view of the MDU - S1XS Enclosure.

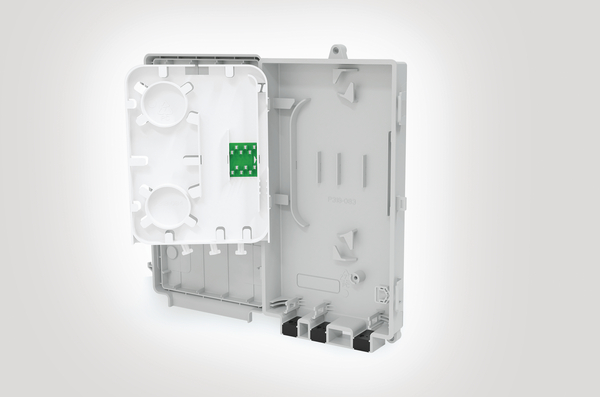

Internal view of the MDU - S1XS Enclosure.

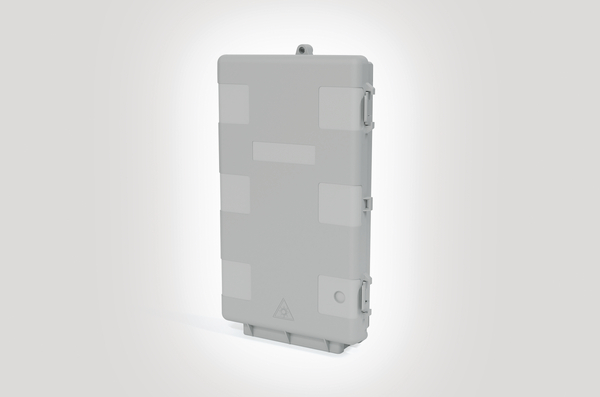

External view of the MDU - S1XS Enclosure.

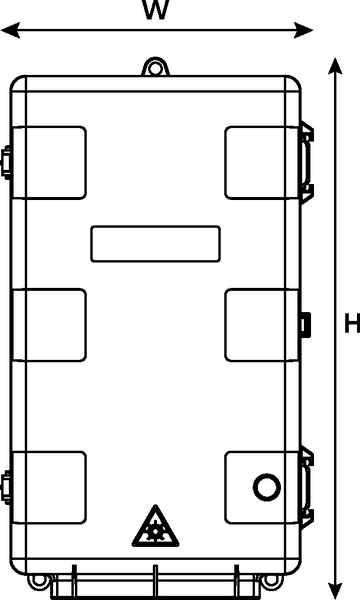

MDU S1XS (front view).
MDU S1XS (side view).

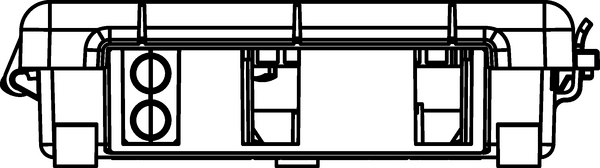

MDU S1XS (bottom view).

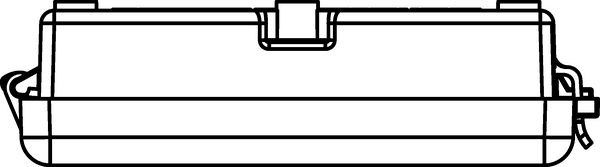

MDU S1XS (top view).
MDU S1XS (rear view).
MDU S1XS (side view).

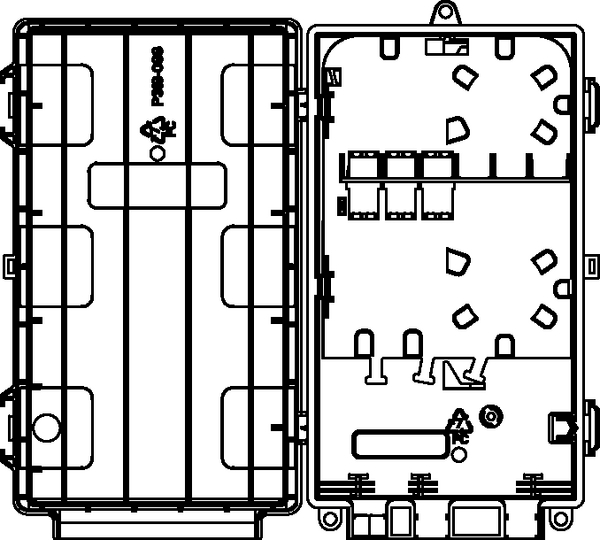

MDU S1XS (internal view).

    Auf die Merkliste

    Fragen Sie Ihr individuelles Angebot an

     Angebot anfordern
    Downloads CAD-Download
    Anwendung Designed for deployment within the last mile of the FTTx network. This enclosure can be used within a Point to Point (P2P) or Point to Multi Point (P2MP) network with the addition of PLC splitters, connectorised or bare end, pigtails and adaptors.
    Farbe Grau (RAL7035)
    Kabeldurchmesser (mm) 8mm
    Kabeldurchmesser min. (mm) 1mm
    Produktbezeichnung MDU-S1XS-T13AP11X
    Spleißkapazität 6
    Typ MDU-S1XS-T13AP11X
    Breite (W) 135mm
    Höhe (H) 233mm
    Tiefe (D) 37mm
    IP Schutzklasse IP54
    ROHS konform Ja
    Zulassungen/Normen
    EAN / GTIN 5022660177637
    Ursprungsland GB
    ETIM 7.0 EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
