speedpipe micro-duct systems

gabocom speedpipe micro-duct system

gabocom is the manufacturer of micro-duct systems, made in Germany. gabocom provides a complete end to end system with products that lend themselves to the all in one solution.  This includes a wide range of fittings for sealing and fixing all dimensions of ducts and variants of bundles as well as general fittings and split ducts. All gabocom products comply with relevant industry standards (and more).

Product Overview

SpeedPipe Ground - Single

SpeedPipe Ground - Single

SpeedPipe Ground - Bundle

SpeedPipe Ground - Bundle

SpeedPipe Direct Install - Single

SpeedPipe Direct Install - Single

SpeedPipe Direct Install - Bundle

SpeedPipe Direct Install - Bundle

Transparent Straight Connector

Transparent Straight Connector

Transparent Reducers

Transparent Reducers

Transparent End Caps

Transparent End Caps

EZA-t Gas/Cable Seal

EZA-t Gas/Cable Seal

SpeedPipe Indoor Fittings

SpeedPipe Indoor Fittings

SP-G - SpeedPipe Ground


SpeedPipe Ground SP-G

SP-G - SpeedPipe Ground Single

Direct Buried / Thick Walled / HDPE

gabocom’s SpeedPipe Ground (SP-G) is a thick-walled duct manufactured using high quality HDPE material for direct buried (DB) applications.
The SP-G duct is available in a variety of different sizes to suit different air blown fibre cables, offering compatible end to end air blown ducted solutions. gabocom manufactures its own in-house range of connecting and sealing elements.


SRV-G tc - SpeedPipe Ground Bundles

SRV-G tc - SpeedPipe Ground Bundles

gabocom’s SpeedPipe Ground tube bundles (SRV-G) are a thick-walled duct manufactured from high quality HDPE material for Direct Buried (DB) applications which include, mole ploughing, open trench, slot cutting (Incl. narrow and micro trenching).

The SRV-G tube bundles are available in a variety of different sizes and can be mixed to create a combination of ducts to suit different network requirements.
To offer compatible end to end air blown ducted solutions, gabocom manufactures its own in-house range of connecting and sealing elements.

SP - SpeedPipe - Direct Install


SP - SpeedPipe

SP - SpeedPipe Single

Direct Installed / Thin Wall / HDPE

gabocom’s SpeedPipe (SP) is a thin-walled duct manufactured from high quality HDPE material for direct installed (DI) applications into a primary duct network.
The SP is available in a variety of different sizes to suit different air blown fibre cables. To offer a compatible end to end air blown ducted solutions, gabocom manufactures its own inhouse range of connecting and sealing elements.


SRV - SpeedPipe Bundles

SRV - SpeedPipe Bundles

gabocom’s SpeedPipe tube bundle (SRV) is a thin-walled duct bundle manufactured from high quality HDPE material for Direct Installed (DI) applications into a primary duct network.

The SRV tube bundles are available in a variety of different sizes and can be mixed to create a combination of ducts to suit different network requirements. To offer a compatible end to end air blown ducted solution, gabocom manufactures its own in-house range of connecting and sealing elements.

Connecting Elements

Our numerous fitting accessories for all our speedpipe dimensions and bundles offer you the full-service package in the matter of fibre optic up to the building.

Whether subduct solution or direct burying: only with suitable sealing, fixing and connecting elements your microduct system also is used on the long term - and you remain flexible in fibres occupation.

More information

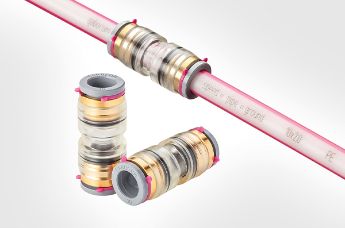

DSM - Transparent Straight Connector

DSM - Transparent Straight Connector

gabocom's in-house of transparent straight connectors (DSM) are suitable for direct buried applications and provide a perfect fit to the corresponding SpeedPipe
duct. The transparent straight connector provides clear visibility to ensure both duct ends are connected to allow a smooth transition from one duct end to another as
the fibre cable travels through. The DSM’s are available in variety of different size’s to suit the corresponding SpeedPipe duct.


RSM - Transparent Reducers

RSM - Transparent Reducers

gabocom's in-house range of transparent reducers (RSM) are suitable for direct buried applications and provide a perfect connection to the corresponding
SpeedPipe size ducts. The transparent reducers provides clear visibility to ensure both duct ends are connected to allow a smooth transition from one duct end to
another as the fibre cable travels through. The RSM’s are available in variety of different sizes to suit the corresponding SpeedPipe duct.


ES - Transparent End Caps

ES - Transparent End Caps

gabocom's in-house range of transparent end caps (ES) which are suitable for direct buried applications and provide a perfect fit to the corresponding SpeedPipe duct.

The end caps are used for closing SpeedPipe against dirt, gas and water up to 0.5 bar and beyond. They are resistant to tensile stressing and can be easily and
installed and disconnect.


KmR - End Cap and Marker

KmR - End Cap and Marker

The KmR was designed to enable network operators to seal off an open-ended duct against gas, water and dirt, which can act as marker label. The KmR is suitable for
direct buried applications and can be easily installed. KmR’s are available in variety of different sizes to suit the corresponding SpeedPipe ducts.


EBM - Inline Seal

EBM - Inline Seal

The divisible EBM seal has been designed to seal damaged duct which is occupied with a fibre optic cable without having to reinstate the duct. The EBM is suitable for
direct buried application and can be easily installed. EBM’s are available in variety of different sizes to suit the corresponding SpeedPipe duct.


EZA-t - Gas/Cable seal

EZA-t - Gas/Cable seal

The divisible EBM-GS seal has been designed to gas seal a fibre cable transitioning between two open end ducts without the need for an external enclosure. The EBM-GS is suitable for direct buried applications and can be easily installed. The EBM-GS seals are available in a variety of different duct sizes each supporting differing seals for different cable sizes.

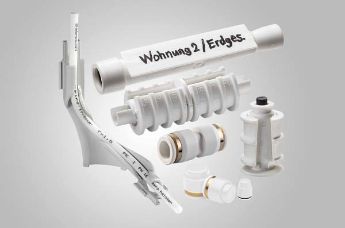

SpeedPipe Indoor


speedpipe indoor

SpeedPipe Indoor Duct

gabocom’s indoor ducted solutions (SP-I) have been specially designed for an in-building air blown application. Manufactured from special low smoke fire hazard material, the SP-I products range conforms to international standards.

The SP-I is available in a variety of different sizes to suit different air blown fibre cables. SpeedPipe Indoor duct is complimented with a range of in-house manufactured connecting and sealing elements to offer a fully engineered, end-to-end solution.


House Lead-in Kit

House Lead-in Kit

gabocom HEO lead-in kit has been designed to enable network operators to transition and gas seal (with the optional EMB-GS) an air blown customer drop lead from an external to an internal duct without the need for an external enclosure.

ES - Indoor LFH End Caps

ES - Indoor LFH End Caps

gabocom's in-house range of indoor LHF end caps (ES) are suitable for internal air blown cable application and provide a perfect fit to the corresponding LFH indoor
SpeedPipe duct. The end caps ES are used for closing SpeedPipe against dirt, gas and water up to 0.5 bar and beyond. They are resistant to tensile stressing and can be
easily and installed and disengage.

DSM - Indoor LFH Straight Connector

DSM - Indoor LFH Straight Connector

gabocom's in-house range of indoor LHF straight connectors (DSM) are suitable for internal air blown cable applications and provide a perfect fit to the corresponding
LFH indoor duct. The internal construction of the straight connector ensures both duct ends are connected, allowing a smooth transition from one duct end to another
as the fibre cable travels through. The LFH DSM’s are available in variety of different size’s to suit the corresponding indoor LFH duct.

IB Indoor Bend Managers

IB Indoor Bend Managers

The indoor LFH Indoor Bend manager has been designed to safely guide LFH indoor SpeedPipe round 90-degree bends preventing the indoor duct from kinking.
The indoor bend managers are stackable enabling multiple indoor LFH SpeedPipes to be guided round tight corners.

EZA-t - Indoor Gas/Cable Seal

EZA-t - Indoor Gas/Cable Seal

The indivisible indoor LFH EZA-t cable/gas seal has been designed as duct and cable seal with a safety function all in one product. It seals all cables sizes within a microduct to the same standards. It included and overpressure >10 bar relief value.

The EZA-t is suitable for indoor air blown fibre cable applications, can be easily installed and is reusable. The indoor LFH EZA-t seals are available in a variety of different sizes each supporting different internal seals for different cable sizes.

EBM-GS - Indoor Inline Gas / Cable Seal

EBM-GS - Indoor Inline Gas / Cable Seal

The divisible indoor LFH EBM-GS seal has been designed to gas seal a fibre cable transitioning between two open end ducts without the need of an external enclosure. The indoor LFH EBM-GS is suitable for indoor applications and can be easily installed. The EBM-GS are available in variety of different size’s to suit the corresponding indoor LFH ducts.

KmR - Indoor End Cap and Marker

KmR - Indoor End Cap and Marker

The indoor LFH KmR was designed to enable network operator to seal off an open-ended duct against dirt, gas and water, and can act as marker label. The indoor LFH KmR is suitable for indoor blown fibre optical cable applications and can be easily installed. KmR’s are available in variety of different size’s to suit the corresponding indoor LFH ducts. Please refer to page 24.
